Save time and enhance job site safety with LegendPressCSG fittings. Manufactured from durable carbon steel, these press fittings are ideal for fuel gas and compressed air applications. Featuring HNBR O-rings known for their exceptional resilience, these fittings offer superior chemical resistance, minimal compression set, and low gas permeability, ensuring an airtight seal even in the most challenging conditions. LegendPressCSG fittings are available in 29 models and 148 configurations, with sizes ranging from 1/2” to 2”.

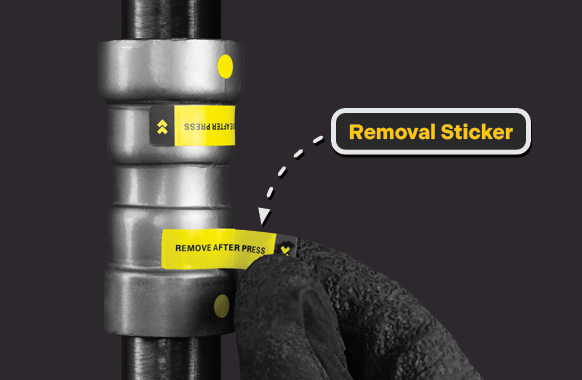

LegendPressCSG fittings are equipped with “Remove After Press” stickers that provide a quick visual indicator when a fitting has been pressed. Once the connection is made with compatible tools and jaws, simply remove the tab/sticker to confirm the press installation is complete.

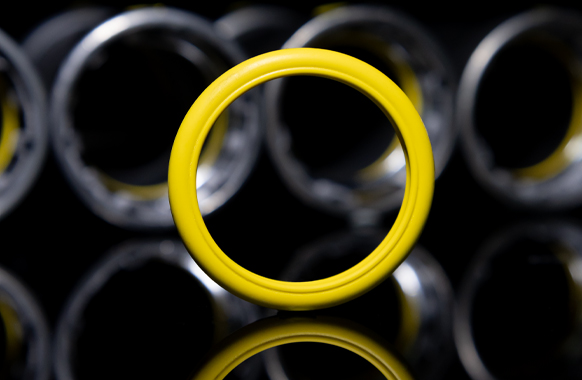

Every LegendPressCSG fitting is built with an HNBR O-Ring. These o-rings are designed to provide the heat and temperature resistance required in gas applications.

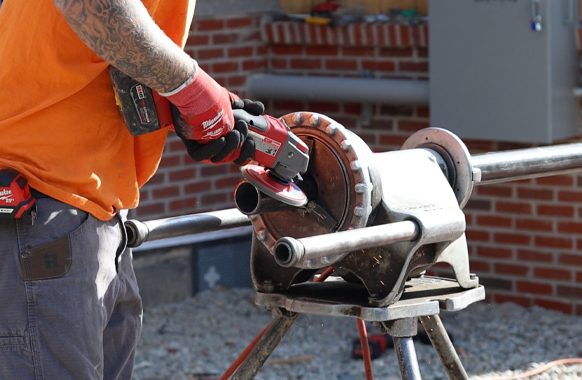

LegendPressCSG fittings utilize black galvanized iron pipe ensuring a firm and long lasting connection. The pipe must be cut square with either a pipe cutter or saw, and then be deburred on the inside and outside using a hand or powered deburring tool.

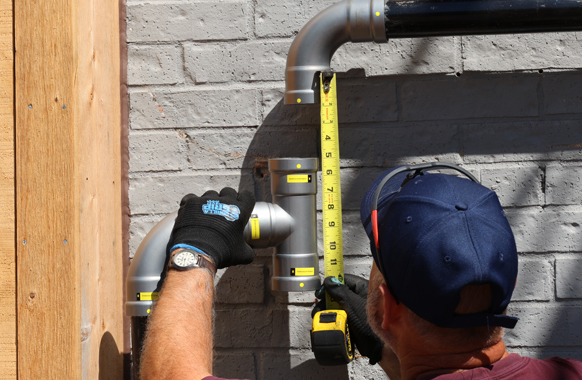

Proper measurement must be done before installing a LegendPressCSG fitting. Refer to the LegendPressCSG IOM for a full insertion depth chart.

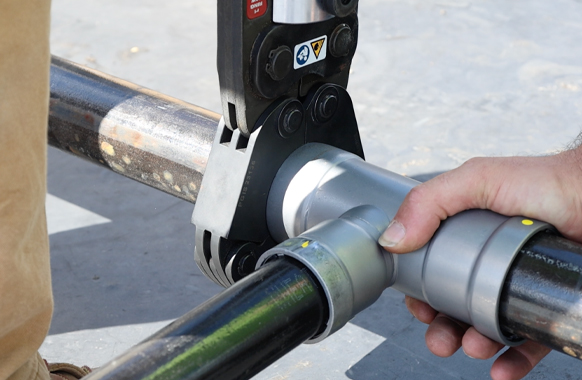

Press-to-connect fittings increases installation speeds while ensuring an air tight connection and reducing labor costs. LegendPressCSG fittings are compatible with Milwaukee, Rigid, and DeWalt press tools and jaws.

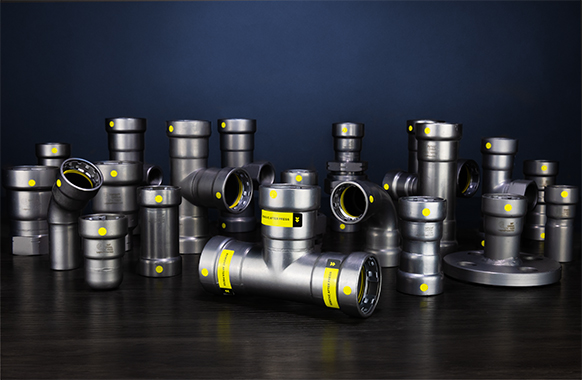

Available in sizes 1/2” to 2” – LegendPressCSG fittings include adapters, couplings, elbows, tees, test caps, and unions.
Legend is committed to quality. We back all LegendPressCSG products with a 15-year product warranty for long-lasting peace of mind.

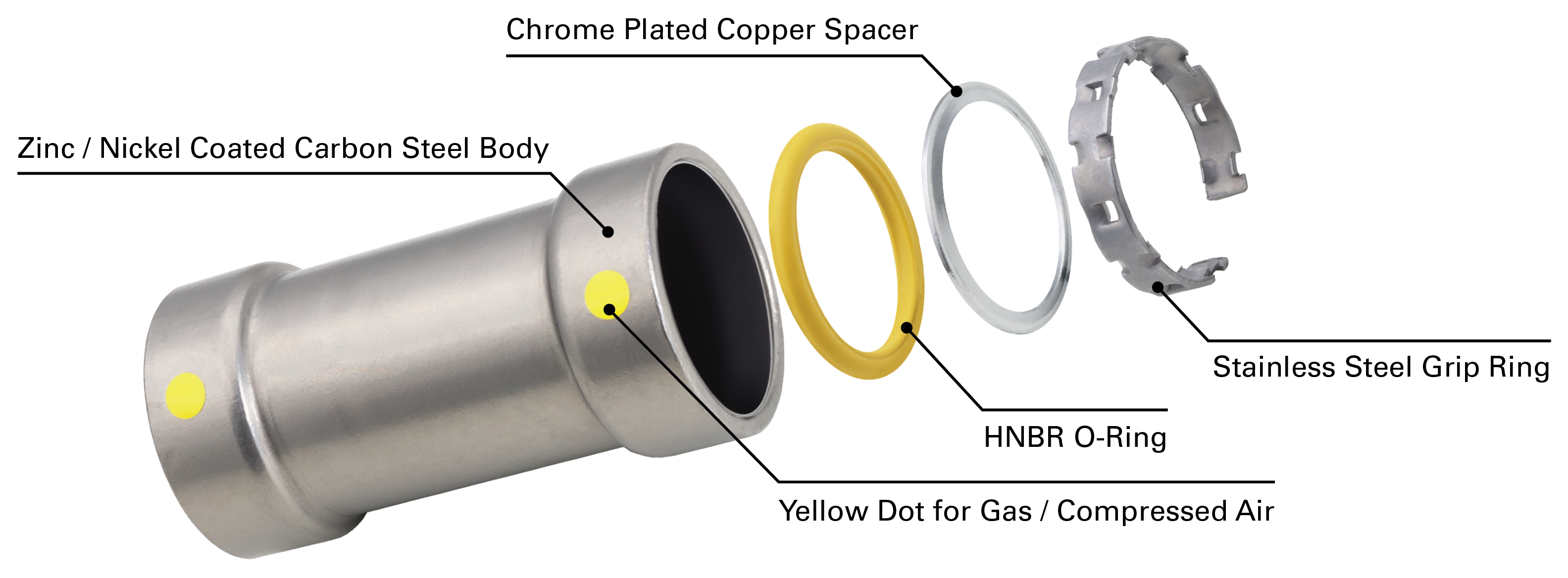

Legend’s Carbon Steel Gas fittings are constructed with a Zinc/Nickel Coated Carbon Steel Body and equipped with a HNBR O-Ring, a Chrome Plated Copper Spacer, and a Stainless Steel Grip Ring.
